Lisnastrain Cavity Trays

Lisnastrain Cavity Trays is a family-owned manufacturing business located at the heart of Mid Ulster in Cookstown, Co. Tyrone. This central location makes delivery or collection within easy reach from all across the country.

All our products are designed and manufactured for ease of use and simplicity of application. They are made by using modern techniques and machinery and every care is taken to ensure that only top quality products are delivered to the client every time.

We deliver damp proof products throughout Northern Ireland, Rep of Ireland and GB.

Some of our lead products:

• Lead slates
• Chimney flashing
• Lead cavity trays
• Dormer flashing
• Detailed lead flashing

Our Service to you...

• All items made to order and to your specification.
• Bespoke items - unusual shapes and sizes of lead trays can be made to order.
• Site visits can be arranged.
• On site fitting available - send us your plans for a free, no obligation quote.
• Staged delivery of goods.

Products

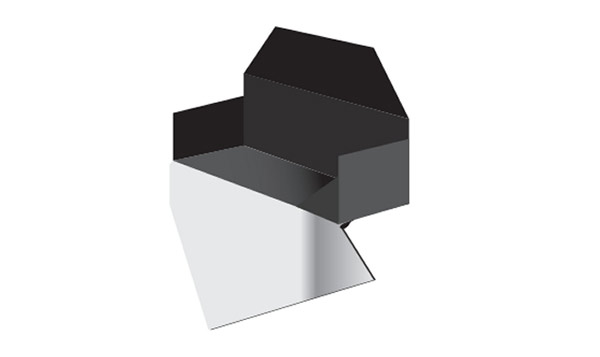

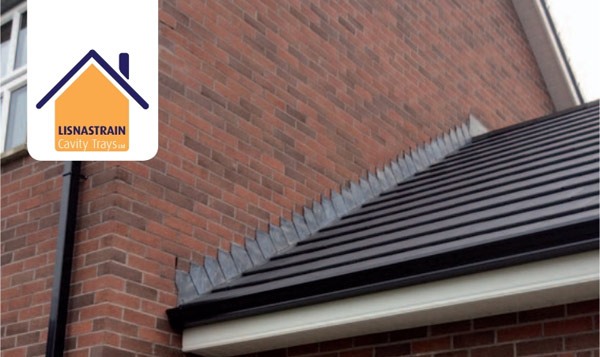

Cavity Trays
Intermediate cavity trays acts as a damp proof course preventing water from penetrating the outer cavity wall and leading to internal dampness.

The trays come as pre-formed to eliminate the onsite difficulty inherent in conventional methods. Trays have a factory fitted flashing to the polypropylene tray. Cavity trays come in left and right handed format. The trays also allow you to adjust to suit the cavity walls width.

The back panel of the tray folds back to cross the cavity. The intermediate cavity trays have an in-built groove along the back to allow the water to free flow down from one tray into another. Trays can be manufactured to suit all degrees as well as type of outer skin. Standard tray is to suit 100mm brickwork with a rise of 75mm.

Block trays can also be manufactured to suit the customers spec.

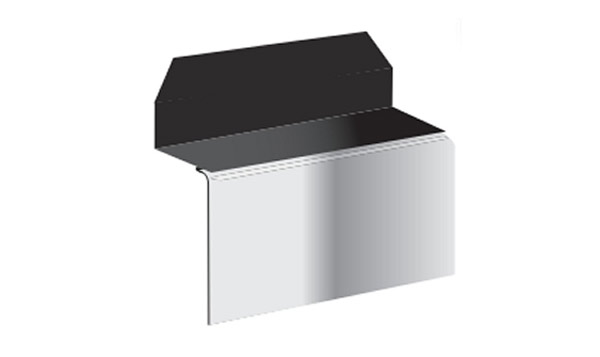

Catchment Tray
The catchment tray is the first tray that would be built in. Also know as the STARTER TRAY.

It is similar to the standard cavity tray but has an extra stop end to discharge the water through a weep vent.

If the gable where the trays are to be inserted is very long we would sometimes recommend a second catchment tray to offset the chance of water building up. Particularly in the case of 100mm stone work.

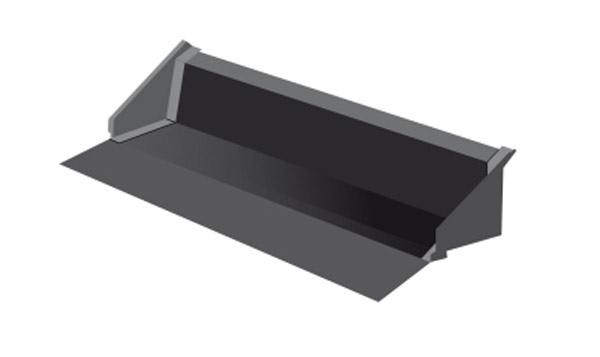

Horizontal Tray
Horizontal Trays are used to provide protection to the building on lean-to roofs or where the use of a cavity tray cannot be used, as there is no pitch roof.

A Lisnastrain cavity tray/horizontal tray can be manufactured to suit any length. Each tray will be made up to order. All trays come with stop ends fitted.

These ends have an interlocking joint which allow for longer runs of horizontal trays. Trays can be manufactured with any size of flashing that is required.

Horizontal trays are suited to join up with internal and external angles. Curved horizontal trays can also be manufactured in an all leaded format.

Ridge Tray
The Ridge Tray straddles the ridge and prevents water from penetrating from the outer cavity wall to the inner cavity wall.

It does this by the fact that it has open ends thus allowing the water to be discharged to the left or the right.

The tray is manufactured from polypropylene and has lead flashing attached.

We look forward to being of service to you in the near future.
